端面全密封橡膠接頭技術條件
|
項目/型號 |
(DN50～300) |
(DN350～800) |
(DN900～3000) |
備注 |
|
工作壓力MPa |
0.6/1.0/1.6/2.0/2.5 |
0.6/1.0/1.6 |
0.6/1.0 |
A、如介質油、酸堿物質 |
|
爆破壓力MPa |
＜1.8 |
＜1.5 |
＜1.2 |
|
|
真空度KPa |
86.7 |
53.3 |
49.5 |
|
|
適用溫度℃ |
-20-+115(特殊可達-30～+250) |
|||
|
適用介質 |
空氣、壓縮空氣.水、海水、熱水、油、酸堿 |
|||
注：主要零件材料同JGD-A型

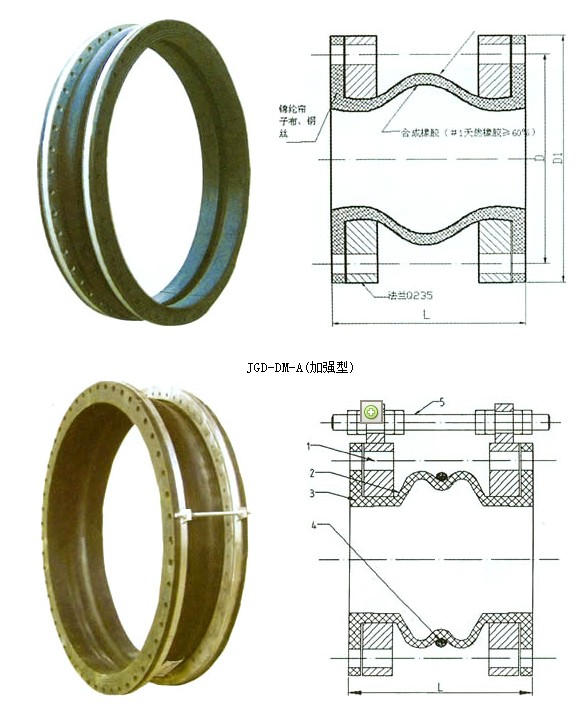

JGD-DM-B(加固可調節型)
端面全密封橡膠接頭通徑、長度、位移參數表
|
通徑 |
長度 |
軸向位移 |
徑向位移 |
偏轉位移 |
||||||
|
A型 |
B型 |
A型 |
B型 |
A型 |
B型 |
|||||
|
mm |
寸 |
伸長 |
壓縮 |
伸長 |
壓縮 |
|||||
|
32 |
1.25″ |
90 |
6 |
10 |
- |
- |
9 |
- |
±7.5° |
- |
|
40 |
1.5″ |
95 |
7 |
10 |
- |
- |
9 |
- |
±7.5° |
- |
|
50 |
2″ |
105 |
7 |
10 |
- |
- |
10 |
- |
±7.5° |
- |
|
65 |
2.5″ |
115 |
7 |
13 |
- |
- |
1l |
- |
±7.5° |
- |
|
80 |
3″ |
135 |
8 |
15 |
- |
- |
12 |
- |
±7.5° |
- |
|
100 |
4″ |
150 |
10 |
19 |
- |
- |
13 |
- |
±7.5° |
- |
|
125 |
5″ |
165 |
12 |
19 |
- |
- |
13 |
- |
±7.5° |
- |
|
150 |
6″ |
180 |
12 |
20 |
- |
- |
14 |
- |
±7.5° |
- |
|
200 |
8″ |
210 |
16 |
25 |
30 |
35 |
22 |
25 |
±7.5° |
±10° |
|
250 |
10″ |
230 |
16 |
25 |
30 |
40 |
22 |
25 |
±7.5° |
±12° |
|
300 |
12″ |
245 |
16 |
25 |
30 |
40 |
22 |
25 |
±7.5° |
±12° |
|
350 |
14″ |
255 |
16 |
25 |
35 |
45 |
22 |
30 |
±7.5° |
±12° |
|
400 |
16″ |
255 |
16 |
25 |
35 |
45 |
22 |
30 |
±7.5° |
±12° |
|
450 |
18″ |
255 |
16 |
25 |
36 |
47 |
22 |
30 |
±7.5° |
±12° |
|
500 |
20″ |
255 |
16 |
25 |
36 |
48 |
22 |
30 |
±7.5° |
±12° |
|
600 |
24″ |
260 |
16 |
25 |
40 |
50 |
22 |
33 |
±7.5° |
±12° |
|
700 |
28″ |
260 |
16 |
25 |
40 |
55 |
22 |
33 |
±7.5° |
±12° |
|
750 |
30″ |
260 |
- |
- |
40 |
55 |
- |
33 |
±7.5° |
±12° |
|
800 |
32″ |
260 |
16 |
25 |
45 |
55 |
22 |
35 |
±7.5° |
±12° |
|
900 |
36″ |
260 |
16 |
25 |
45 |
55 |
22 |
35 |
±7.5° |
±12° |
|
1000 |
40″ |
260 |
16 |
- |
45 |
60 |
22 |
35 |
±7.5° |
±12° |
|
1100 |
44″ |
300 |
- |
- |
45 |
60 |
- |
35 |
±7.5° |
±12° |
|
1200 |
48″ |
300 |
16 |
25 |
50 |
60 |
24 |
38 |
±7.5° |
±10° |
|
1300 |
52″ |
300 |
- |
- |
50 |
60 |
- |
38 |
±7.5° |
±lO。 |
|
1400 |
56″ |
350 |
18 |
25 |
50 |
70 |
24 |
40 |
±7.5° |
±10° |
|
1500 |
60″ |
350 |
- |
- |
60 |
70 |
- |
40 |
±7.5° |
±10° |
|
1600 |
64″ |
350 |
18 |
25 |
60 |
70 |
24 |
46 |
±7.5° |
±10° |
|
1800 |
72″ |
400 |
18 |
25 |
60 |
75 |
24 |
48 |
±7.5° |
±10° |
|
2000 |
80″ |
450 |
18 |
25 |
70 |
75 |
25 |
50 |
±7.5° |
±10° |
|
2200 |
88″ |
500 |
18 |
25 |
70 |
80 |
25 |
60 |
±7.5° |
±l()。 |
|
2400 |
96″ |
500 |
18 |
25 |
80 |
80 |
25 |
60 |
±7.5° |
±lO。 |
|
- |
- |
- |
20 |
28 |
85 |
80 |
- |
60 |
- |
±10° |
|
- |
- |
- |
25 |
30 |
- |
- |
- |
- |
- |
- |
|
- |
- |
- |
25 |
30 |
- |
- |
- |
- |
- |
- |
